Understanding Heat Engines: The Brilliant Power Conversion System
In today’s world, cars, motorbikes, and factories all run on Heat engines. This engine, invented by James Watt in 1765/1769, is based on the principle of the First law of thermodynamics. James watt was a Scottish inventor who improved the existing steam engine, making it much more efficient and powerful, which was a key development for the Industrial Revolution.
What Is a Heat Engine?
A heat engine is a device that converts heat energy into work. This phenomenon seems quite simple to explain, but there is a lot of physics behind it. There are two types, petrol engine and steam engine.
Every day we use Heat engine — when we start our car, when a train moves, or when electricity is generated. These engines burn fuel and convert the energy released into physical word. Today we’ll look at how these engine actually works, what its types are, and why it’s such an important part of our modern world.

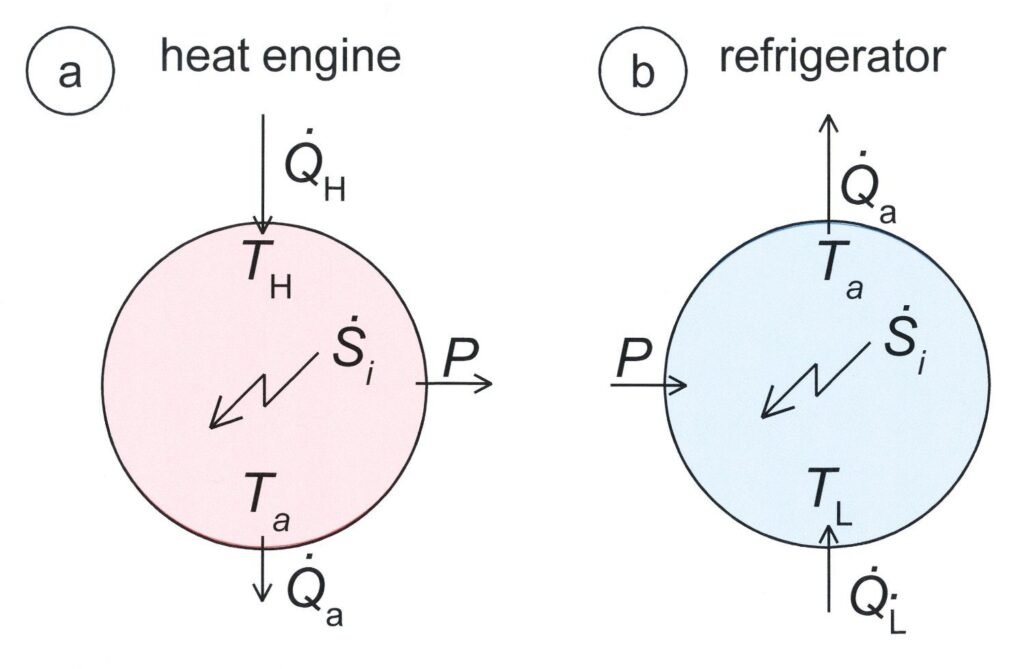

How Does a Heat Engine Work?
A heat engine is made up of 2 things, or we can say it has 2 parts.
- Hot Reservoir (Heat Source): This provides heat energy which is then converted into work. This is the most important part of this system because unless heat energy is present, work will not be produced.
- Cold Reservoir ( Heat sink ): This absorbs unused or waste heat. This engine needs a temperature difference between the hot and cold reservoirs to operate. Without a cold reservoir to dump the excess heat, no net work can be produced.
The Basic Working Cycle
A heat engine operates in a cycle, such as the Cronstadt engine, Otto cycle, and Rinke cycle. This process involves:
- Heat absorption from a source.
- Conversion of part of that heat into work.
- Rejection of remaining heat to the surroundings.
The Science Behind a Heat Engine: Thermodynamic Principles
A heat engine works on the principles of thermodynamics, specifically the First law and the second law of thermodynamics. By understanding these two phenomena, we can understand how these engine works.
First Law of Thermodynamics – Conservation of Energy
-According to the first law, energy can neither be created nor destroyed. Energy can only be converted from one form to another.
In these engine, heat is converted into work, and the heat that is saved is released into the atmosphere. This law ensures that the energy balance within a system always remains the same — no more, no less.

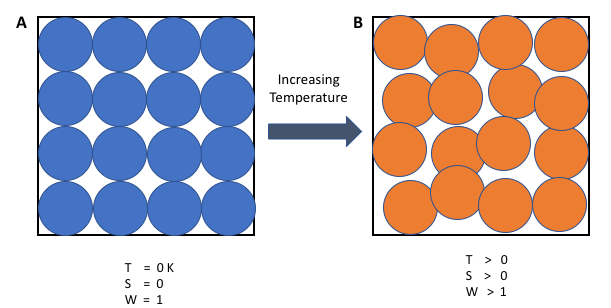

Second Law of Thermodynamics – Entropy and Efficiency Limits
This law is introducing the concept of Entropy, which is that not all energy can be converted into heat, there is always some energy in the atmosphere.
This shows that the Efficiency of these engine can newer be equal to 100% – there will always be an unavoidable loss dictated by natural thermodynamic limits.
Types of Heat Engines
Heat engines can be broadly classified into two main categories, based on where the combustion of fuel takes place. Each type operates on the same basic thermodynamic principles but differs in design, application, and efficiency.
1. External Combustion Engines
In an external combustion engine, fuel is burned in a chamber throughout the engine, which then produces Heat. The heat is then transferred to the working substance, which then expands and performs mechanical work.
Examples:
- Steam engines, commonly used in early locomotives and some modern power plants.
- Stirling engines, known for their quiet operation and high efficiency in specialized industrial systems.
Applications:
External combustion engines are often used in power generation, industrial processes, and renewable energy systems where stable and continuous heat sources are available.
2. Internal Combustion Engines
In an internal combustion engine, fuel is burned in a combustion chamber inside the engine, and the resulting propellant produces high-pressure gases. These gases then travel to pistons and turbines, which then convert the thermal energy into work.
Examples:
- Automobile engines (gasoline and diesel).
- Aircraft engines.
- Motorcycle and marine engines.
Applications:
The internal combustion of this engine forms the backbone of modern transportation, powering cars, airplanes, and ships across the globe due to its compact design and high power output.
Efficiency of a Heat Engine
The formula for the heat engine Efficiency is:
–Efficiency(η)= Work Output/ Heat Input
-Efficiency(η) % = Work Output/ Heat Input × 100%
Why No Engine Can Be 100% Efficient
According to the Second Law of Thermodynamics, it is impossible for any heat engine to convert all absorbed heat into work. Some energy will always dissipate as unusable heat, often due to friction, incomplete combustion, or thermal losses to the environment.
Real-Life Examples of Heat Engines
These are everywhere around us — powering transportation, generating electricity, and even supporting sustainable technologies. Here are some of the most common heat engine real life examples:
- Car Engines: Internal combustion heat engines power most vehicles today.
- Steam Turbines: Used in power plants to generate electricity.
- Jet Engines: A type of heat engine that produces thrust through combustion gases.
- Stirling Engines: Environmentally friendly heat engines used in renewable energy systems.
Conclusion: Why Heat Engines Matter
This engine is not just a mechanical system — it’s the foundation of our industrial and transportation world. From powering cities to enabling global mobility, the heat engine stands as a symbol of innovation, thermodynamic brilliance, and human progress.
As we move toward a greener future, optimizing this engine efficiency will be crucial in reducing emissions and ensuring sustainable energy use.
